Bomag 3 Ton Roller 120AD

Availability:

RENT NOW

Overview

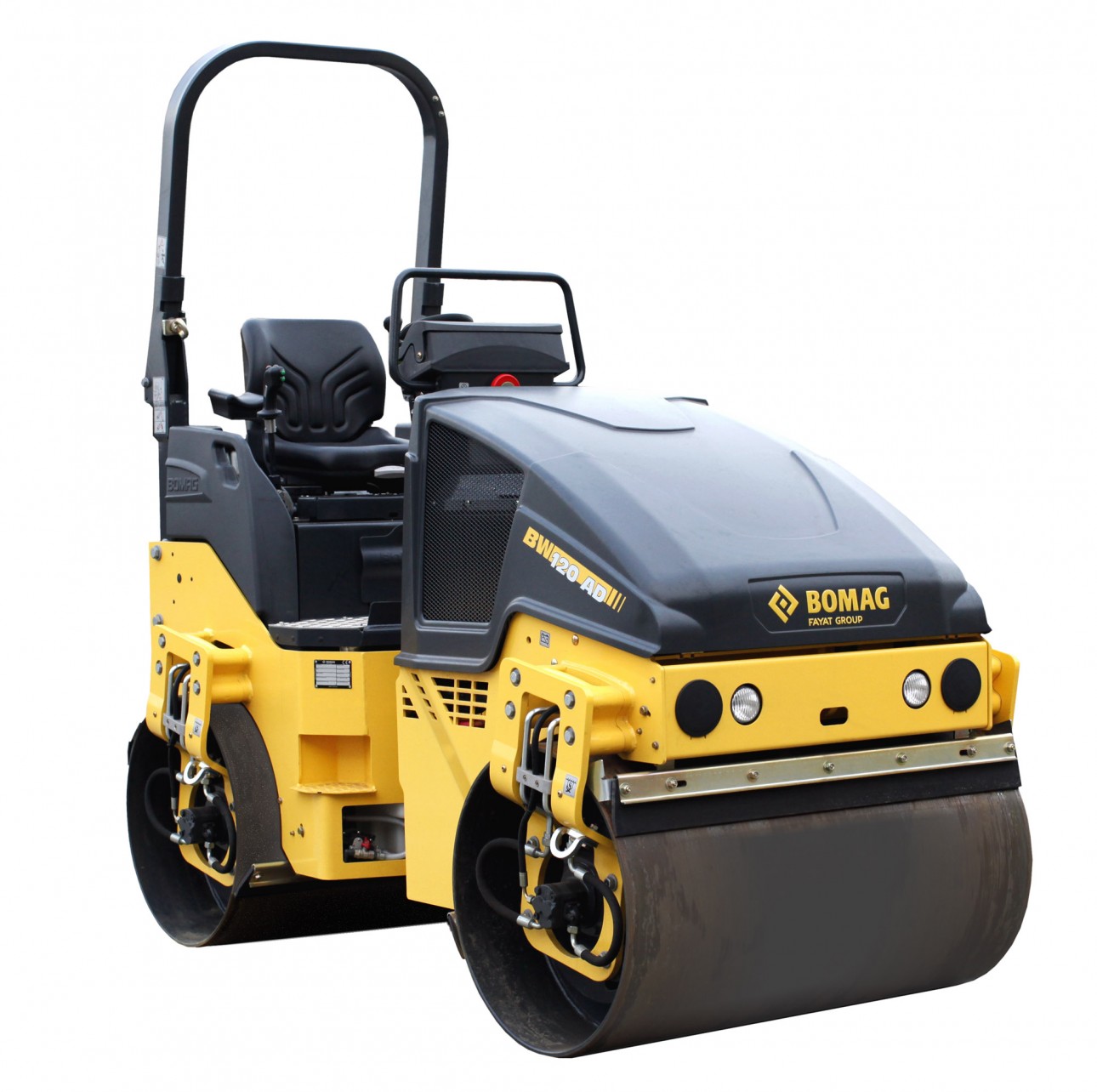

BOMAG BW 120 AD-5 TANDEM VIBRATORY ROLLER

BOMAG compact tandem vibratory rollers are perfectly designed for walkways and repair work, as well as finishing work in road construction. BOMAG compact tandem rollers have also acquired an excellent reputation in gardening and landscaping.

EASE OF USE IS STANDARD

Every function is self-explanatory and intuitive to operate after a very short time. The main functions can be selected precisely and error-free by the ergonomic control lever.

CLEAN EDGES

The edge cutting unit can be equipped with various tools for cutting and pressing, and operated with the control lever.

BOMAG ECONOMIZER

The patented BOMAG ECONOMIZER shows the operator the current degree of compaction at all times. LED’s provide permanent information and effectively prevent under or over-compaction.

COMFORTABLE COMPACTION WORK

In tandem with the IVC (Intelligent Vibration Control) system, the exciter system guarantees consistent compaction and reliable operation at all times.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

MAIN SPECS

  • Operating Weight6261LBS
  • Horsepower33.5HP
  • Emission RatingTier 4 Final
  • Roller Width47.2 in



ENGINE

  • Engine Make/ModelKubota / D 1703
  • Net Torque77LBF/FT
  • Rated Speed2400rpm
  • Displacement100in3



DRIVETRAIN

  • Transmission TypeHydrostatic
  • Max Forward Speed6.8mph
  • Cooling MethodWater
  • Brake TypeService: Hydrostatic / Parking: Hydromechanical
  • Fuel Tank Capacity9.2 gal



DIMENSIONS

  • Length8ft 3in
  • Width4ft 2in
  • Height – ROPS / No ROPS8ft 5in / 5ft 11in
  • Wheelbase5ft 9in
  • Overhang – Left / Right1.4in / 1.4in
  • Ground Clearance10in



DRUM DIMENSIONS

  • Width (front/rear)47.2in / 47.2in
  • Diameter (front/rear)27.6in / 27.6in
  • Drum Shell Thickness0.5in
  • Linear Drum Load (front/rear)66.1 lbs/in / 66.1 lbs/in
  • Water Tank Capacity54.2 gal



VIBRATORY SYSTEM

  • Vibratory Frequency (front/rear)3,600 vpm / 4,020 vpm
  • Amplitude (front/rear)0.02in / 0.02in
  • Centrifugal Force (front/rear)7,419 lbf / 9,442 lbf
  • Gradeability30% (w/ vibration) / 40% (w/o vibration)



STEERING

  • Steering AxleArticulation
  • Steering Angle32°
  • Oscillation Angle10°
  • Turning Radius – Inside8ft

Rental Info:

4 Hours: $225
Day: $325
Week: $1100
Month: $2750

How do I reserve items for the date of my job?

An order can be placed over the phone, or in person at either of our locations. A driver’s license and security deposit are needed for reservations.

We recommend reserving your item as soon as you know what is desired due to a first come first serve policy. Our busiest months are from May – October. You may reserve the maximum amount of items necessary, and then bring your counts down as the event planning develops.

We typically deliver 1-2 days prior to a job. We typically request a 4 hour window between 7 am – 4 pm Monday – Friday and we do not deliver on Saturday or Sunday. There may or may not be an additional fee for delivery at a specified time, or after normal hours of operation. We will do our best to accommodate your needs.
