Haulotte 55′ Trailer Mounted Boom




Articulated Trailer 5533 A

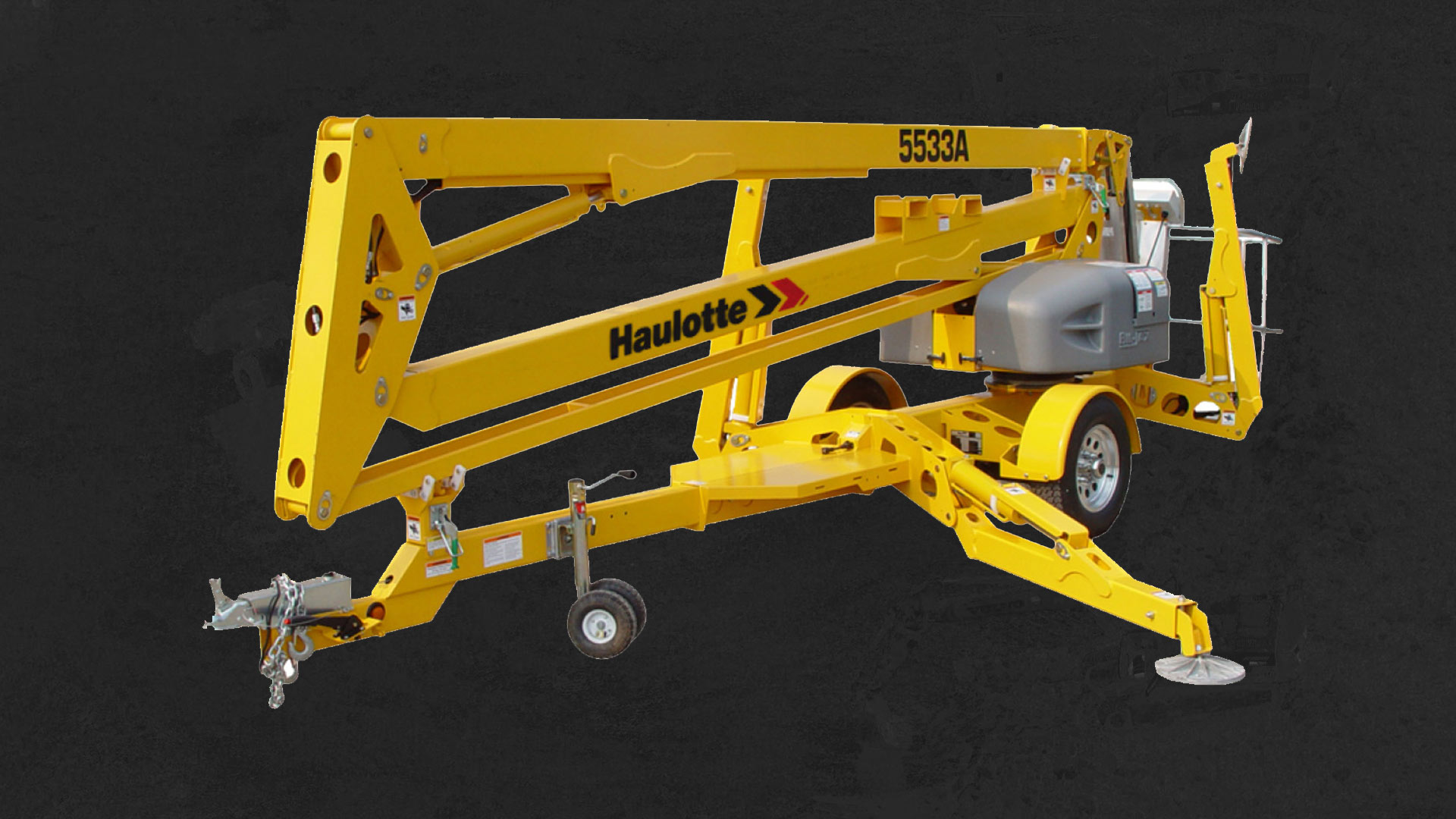

The Haulotte 5533 A Trailer Mounted Boom

  • Can be towed by a standard half-ton pickup truck – No commercial driver’s license needed
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • Exceptional productivity
  • Superior combination of industry leading capacity and outreach4
  • Air / water lines and 110V GFI protected power to the platform
Working height 61 ft 3 in
Platform height 55 ft 3 in
Horizontal outreach (from centerline) 33 ft 5 in
Horizontal outreach (from edge of footpad) 27 ft 4 in
Up and over height 23 ft 1 in
Lift capacity 500 lb
Length – stowed 23 ft 8 in
Width stowed 5 ft 7 in
Height stowed 6 ft 9 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib – length 4 ft 3 in
Jib – Vertical Motion 150° (+ 70 / – 80)
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225 / 75 R15
Power source 4 x 6 V 245 amp-hr
Tongue weight (no options) 335 lb
Weight (no options) 4,800 lb
Widest Point 14 ft 8 in
Widest Point 15 ft

Rental Info

4 Hours: $280
Day: $400
Week: $1200
Month: $2600

How do I reserve items for the date of my job?

An order can be placed over the phone, or in person at either of our locations. A driver’s license and security deposit are needed for reservations.

We recommend reserving your item as soon as you know what is desired due to a first come first serve policy. Our busiest months are from May – October. You may reserve the maximum amount of items necessary, and then bring your counts down as the event planning develops.

We typically deliver 1-2 days prior to a job. We typically request a 4 hour window between 7 am – 4 pm Monday – Friday and we do not deliver on Saturday or Sunday. There may or may not be an additional fee for delivery at a specified time, or after normal hours of operation. We will do our best to accommodate your needs.
